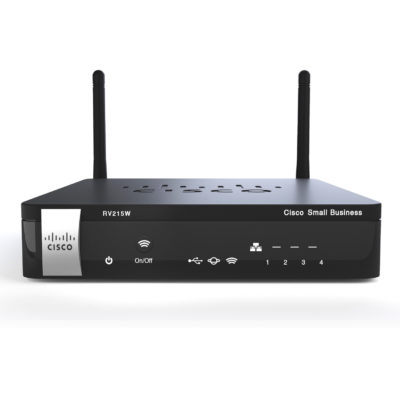

Cisco RV215W

102 $

The Cisco RV215W Wireless-N VPN Router provides simple, affordable, highly secure, business-class connectivity to the Internet from small and home offices and remote locations.

Series	Cisco Small Business RV Series Routers
Overview	Product Overview
Status	End of Sale EOL Details
Release Date	10-DEC-2012
End-of-Sale Date	02-DEC-2019 Details
End-of-Support Date	30-NOV-2024 Details
Product ID

134,640 د.ع

102 $

Categories: Cisco, Small Business Tags: Cisco, Router, RV215W, Small Busniess, Wireless

Specifications

Feature

Description

Routing

• Static routing

• Dynamic routing

• Routing Information Protocol (RIP) v1 and v2

• Inter-VLAN routing

Layer 2

• 802.1Q-based VLANs

• 4 active VLANs (3 to 4094 range)

Network

• Dynamic Host Configuration Protocol (DHCP) server

• Point-to-Point Protocol over Ethernet (PPPoE)

• Point-to-Point Tunneling Protocol (PPTP)

• Layer 2 Tunneling Protocol (L2TP)

• DNS proxy

• DHCP relay agent

• IGMP Proxy and multicast forwarding

• Rapid Spanning Tree Protocol (RSTP)

• Dynamic DNS (DynDNS, TZO, no-ip.com, 3322.org)

• Network Address Translation (NAT), Port Address Translation (PAT)

• Port management

• Port mirroring

• Software-configurable network edge (DMZ) to any LAN IP address

• Dual-stack IPv4 and IPv6

• 6-to-4 tunneling

• Multicast Listener Discovery (MLD) for IPv6 (RFC 2710)

• Stateless address auto-configuration

• DHCP v6 Server for IPv6 clients on LAN

• DHCP v6 client for WAN connectivity

• Internet Control Message Protocol (ICMP) v6

• Static IPv6 Routing

• Dynamic IPv6 Routing with RIP for IPv6 (RIPng)

• IPv6 Rapid Deployment

Security

• Stateful packet inspection (SPI) firewall

• Port forwarding and triggering

• Firewall access control lists and content filtering

• Denial-of-service (DoS) prevention

• MAC-based wireless access control

• Static URL blocking or keyword blocking

• Schedule-based Internet access policy

• HTTPS web access to the device manager

• Username/password complexity enforcement

• Self-signed SSL certificate

• Import and export certificate using Privacy-Enhanced Mail (PEM) format

• 5 IPsec client sessions using Cisco QuickVPN client

• 5 PPTP client sessions for remote client access

• Triple Data Encryption Standard (3DES)

• Support for VPN pass-through of PPTP, L2TP, and IPsec

• 1 IPsec site-to-site tunnel for branch office VPN support

Quality of service (QoS)

• 802.1p port-based priority on LAN port, application-based priority on WAN port

• 4 priority queues

• Differentiated Services Code Point (DSCP) support

• Class of Service (CoS)

• Bandwidth management for service prioritization

Management

• Simple Network Management Protocol (SNMP) v3

• Event logging: local, syslog, email alerts

• Firmware updates through a web browser

• Imported/exported configuration files in simple text format

• Simple browser-based configuration (HTTP/HTTPS)

• Bonjour and Universal Plug and Play (UPnP)

• Network diagnostics: Ping, traceroute, and DNS lookup

Performance

• NAT throughput: 90 Mbps

• Concurrent sessions: 5000

• VPN throughput: 5 Mbps

Wireless LAN Specifications


Feature	Description
WLAN hardware	IEEE 802.11n standard-based access point with 802.11b/g compatibility Radio and modulation type: • 802.11b: direct sequence spread spectrum (DSSS) • 802.11g/n: orthogonal frequency division multiplexing (OFDM) • 2 omnidirectional 1.8 dBi gain fixed external antennas Operating channels: • 11 in North America • 13 in most of Europe • Automatic channel selection Transmit power: • 802.11b: 17 dBm +/- 1.5 dBm • 802.11g: 15 dBm +/- 1.5 dBm • 802.11n: 12.5 dBm +/- 1.5 dBm Receiver sensitivity: • -87 dBm at 11 Mbps • -71 dBm at 54 Mbps • -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40°
Wireless Domain Services (WDS)	• Wireless signals can be repeated by up to 3 compatible devices
Wi-Fi Multimedia (WMM)	• WMM with QoS (802.11e), WMM power save (WMM-PS)
Active WLAN clients	• Up to 32 clients
Service Set Identifiers (SSIDs)	• Up to 4 separate wireless networks
Wireless isolation	• Wireless isolation between clients
WLAN security	• WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise

Brand

Cisco
